W11 SERIES- 3 ROLLER PLATE BENDING MACHINE
Product Description

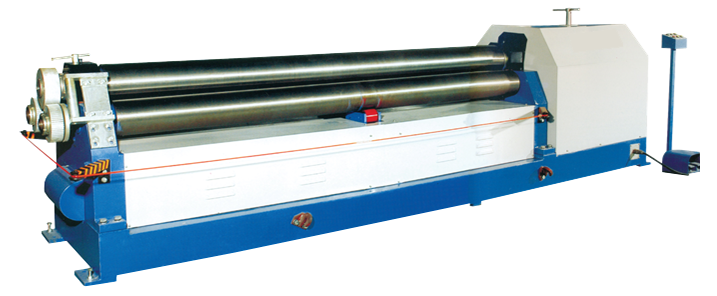

3 ROLLER PLATE BENDING MACHINE
Model: W11 SERIES
Intoduction:
The Up and down parts of W11 series three rollers plate bending machine utilizes mechanism. The transportation parts are mechanically driven. The upper roller can be moved up and down by the motor to discharge the work piece. According to the customer’s requirement, the machine can be supplied with specific rollers to bend angle steel and steel pipe.
Technical Parameters:
|
Model |
Max. Thickness (mm) |
Max. Width (mm) |
Yield limit (mpa) |
Min. Diameter full capacity (mm) |
Top roller diameter (mm) |
Bottom roller Diameter (mm) |
Motor (kw) |
Weight (kg) |
|
W11 10x2500 |
10 |
2500 |
245 |
Φ 600 |
Φ 230 |
Φ 190 |
5.5/3 |
3485 |
|
W11 8x2500 |
8 |
2500 |
245 |
Φ 230 |
Φ 230 |
Φ 210 |
5.5/2.2 |
4300 |
|
W11 4x3100 |
4 |
3100 |
245 |
Φ 400 |
Φ 165 |
Φ 110 |
5.5/3 |
2720 |
|
W11 6x3100 |
6 |
3100 |
245 |
Φ 250 |
Φ 230 |
Φ 210 |
3/2.2 |
4715 |
|
W11 4x1300 |
4 |
1300 |
245 |
Φ 145 |
Φ 135 |
Φ 110 |
3/1.5 |
1125 |
|
W11 3x1600 |
3 |
1600 |
245 |
Φ 145 |
Φ 135 |
Φ 110 |
3/2.2 |
1207 |
|
W11 3x2000 |
3 |
2000 |
245 |
Φ 150 |
Φ 140 |
Φ 110 |
3/2.2 |
1360 |
