C & Z PURLIN ROLL FORMING MACHINE
sales@larosagroup.com
Product Description
ROLL FORMING MACHINE FOR C&Z PURLIN
MODEL: C&Z PURLIN
| MATERIAL PARAMETER | |
| MATERIAL TYPE | COL ROLLED COIL, HOT ROLLED COIL, GALVANIZED COIL |
| MATERIAL THICKNESS | 1.5-3.0mm |
| MATERIAL INPUT WIDTH | ~DEPENDS ON THE SELECTED SIZE |
| MATERIAL YIELD STRENGTH | Q235MPA |
| Main Composition of the Machine | ||||||
 |
 |
 |
 |
 |
 |
 |

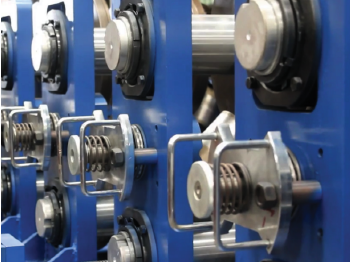

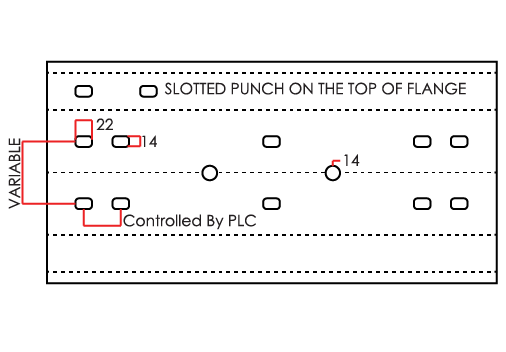

| C&Z PURLIN MACHINE PHOTO | C&Z PURLIN PROFILE DRAWING |
 |
 |
|
C PROFILE DRAWING (ADJUSTABLE HEIGHT FROM 30mm TO 80mm) ; (ADJUSTABLE WIDTH FROM 80mm TO 300mm) |
C PROFILE PHOTO |
 |
 |
|
Z PROFILE DRAWING (ADJUSTABLE HEIGHT FROM 35mm TO 80mm) ; (ADJUSTABLE WIDTH FROM 100mm TO 300mm) |
Z PROFILE PHOTO |
 |
 |
