QUICK CHANGE ROLL FORMING MACHINE

Model: C&Z PURLIN

Features:

It is taking the advantage of manual non-level adjustment for producing varied specification of C & Z purlins, in no need of roller, punching mould, and cutter changed.

Contains:

• Material Parameter
• Work Piece drawing & sample
• Machine Layout
• Production Process
• Machine Parts Specification and photos
• C/Z Tolerance

Technical Parameters:

• Materials: cold rolled coil,hot rolled coil, galvanized coil
• Yield strength: Q235MPA, Q345MPA
• Thickness: 1.5–3.0 mm
• Material Width: depend on the selected size

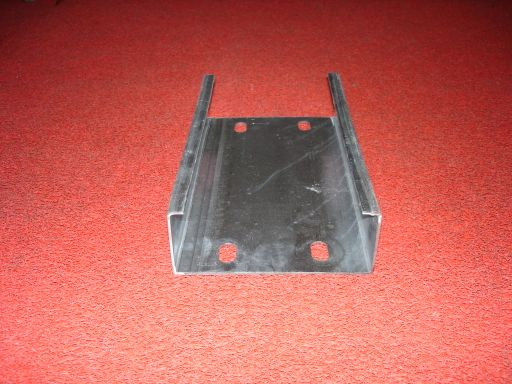

 Workpiece Sample:
