JF21-200 - SERIES OPEN BACK PRESS

sales@larosagroup.com

JF21-200 - SERIES OPEN BACK PRESS

sales@larosagroup.com
Share

Product Description

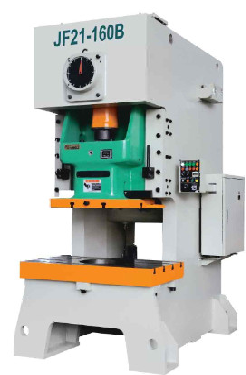

SERIES OPEN BACK PRESS

JF21-200


Main Features:

  • Welded body with steel plate and high intensity
  • Main motor is made by Seimens
  • Adopts pneumatic friction clutch and brake
  • Cluster gear adopts the flooding oil lubrication
  • Six-face rectangle length guide
  • Rigid pressing down style overload protector
  • JF21-25/25b/45 adopts manual shut height adjustment among these types. JF21-25/45 adopts scale display and JF21-25b with digital display
  • JF21-45 ca equip with die set height adjustment motor, the value will be displayed by digital
  • JF21-25B, JF21-45 and above type equipped with lifting balance cylinder
  • Duplex valve imported
  • JF21-160 and above models adopt grease lubrication system
  • Balancing cylinder adopts manual lubrication system
  • Controlled by PLC with internal brand
  • Buttons, indicators, AC contactors, air circuit breakers and other controlling devices are imported from internal brand
  • Equipped with optional air cushion device,automatic feed shaft and photo electric protector,which can use to work with various automatic equiopments



Model

Unit

JF21-63

JF21-80

JF21-110

JF21-160B

JF21-200

Nominal Force

Kn

630

800

1100

1600

2000

Stroke under nominal force

mm

4

5

6

6

6

Side stroke

mm

120

140

160

160

180

Number of stroke - Fixed

min -1

70

60

50

40

35

Number of stroke – Variable (optional)

min-1

60-80

50-70

40-60

35-50

30-40

Max die set height

mm

300

320

350

350

390

Die set height adjustment

mm

80

80

80

110

110

Distance from slide block centre to the frame

mm

300

300

350

380

390

Workable dimension

(F*B x L *R)

mm

580x900

580x1000

680x1150

740x1300

760x1400

Dimension of workable hole

mm

Φ200x40xΦ180

Φ200x40xΦ180

Φ260x50xΦ220

Φ300x50xΦ260

Φ300x50x260

Thickness of bolster

mm

110

120

14

150

160

Hole dimensions in bed

(Dia F* B x L *R)

mm

390x460

390x520

420x540

480x600

Φ470

Dimension of side bottom surface

(F*B x L *R)

mm

420x480

420x560

500x650

580x770

600x800

Size of the handle hole

 (Dia x Depth)

mm

Φ50x80

Φ60x80

 Φ60x80

Φ65x85

Φ65x90

Distance between column of body

mm

560

640

760

850

870

Main motor power

kW

5.5

7.5

11

15

18.5

Outline dimension

(F*B x L *R)

mm

1580x1210x2520

1640x1280x2700

1850x1450x3060

2230x1630x3210

2500x1580x3420

Net Weight

kg

54000

7000

9340

14420

17350
