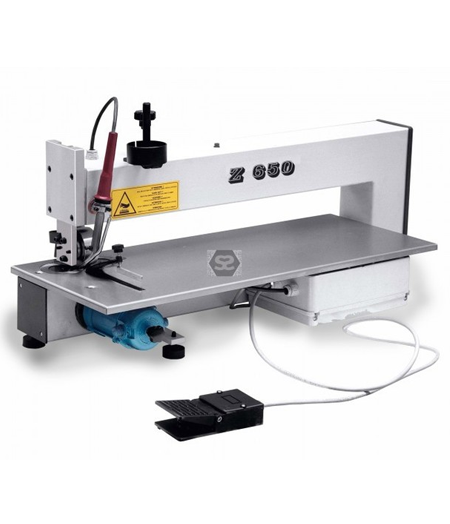

Z 650-GLUE THREAD SPLICING MACHINE
sales@larosagroup.com
Product Description
GLUE THREAD SPLICING MACHINE
Model: Z 650
TECHNICAL DATA:
|
Arm length |
mm |
650 |
|
Veneer Thickness |
mm |
0,4÷2 |
|
Feed speed |
m/1’ |
8 |
|
Total electric power |
kw |
0,18 |
|
Noise measurement |
dB |
73,5 |
|
Voltage Single Phase |
Volt |
220 |
|
Power |
Kw |
0.12 |
|
Table size |
mm |
2000X1000X930 |
|
Luminous surface |
mm |
1900X900 |
|
Weight |
Kg |
150 |
|
Weight |
Kg |
40 |
|
Overall dimensions |
mm |
860X320X450 |
|
Packing overall dimensions |
mm |
900X350X500 |
ADVANTAGES:
These models are suggested to joinery workshops or companies where joining operation is not full-time required. Thread heating is by electric resistance. The temperature is adjustable by means of commutator. The feed speed is constant.
Bench version (Z 650) is available. Machines are supplied with one thread spool, needles, and tweezers anti adhesive liquid product.
