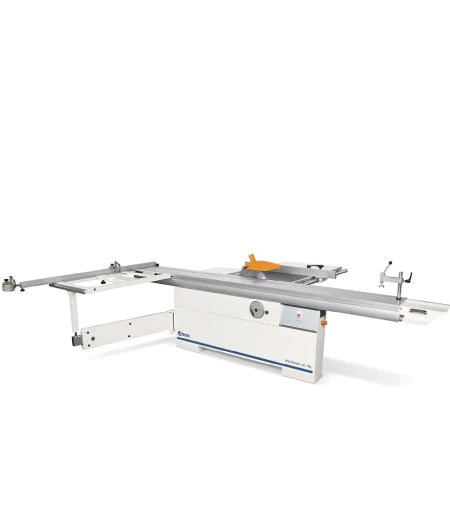

SC 4 ELITE S - CIRCULAR SAW MACHINE WITH TILTING BLADE

sales@larosagroup.com

SC 4 ELITE S - CIRCULAR SAW MACHINE WITH TILTING BLADE

sales@larosagroup.com
Share

Product Description

CIRCULAR SAW WITH TILTING BLADE

Model: SC4 - SERIES



Circular saw with tilting blade for demanding craftsmen and carpentries which combines working accuracy with easy of use and saving. A perfect cut result is guaranteed by the saw unit constituted by a mighty, cast iron structure. Great workpiece stability during machining with the large squaring frame, dimensions 1100 x 650 mm. Customization for every demand of use, with the anodized-aluminum sliding tables with 3260 mm strokes.

SC 4 - INDEPENDENT CIRCULAR SAW MACHINE view-specification-new.png
SC 4 - SINGLE MOTOR CIRCULAR SAW MACHINE view-specification-new.png



Machine Features:

SC 4 Elite Sliding Table Panel Saw

Precision, practicality, cost-effectiveness: the right ingredients to get great satisfactions.

Solid and rigid, to guarantee long-lasting reliability.
Customization for every demand of use.





SC 4 Elite Sliding Table cs4.png.jpg

The Elite sliding table is made of extruded anodised aluminium with a closed honeycomb structure. The sliding table runs on an exclusive slideway system consisting of calibrated and hardened F550 SX steel guides. The sliding table is the result of 50 years’ experience and expertise at SCM.

Dimensions: 290 x 142 x 1600 mm

• Top quality precision
• Smooth, silent action
• Self-cleaning dustproof system
• Long lasting accuracy, no
• adjustments required

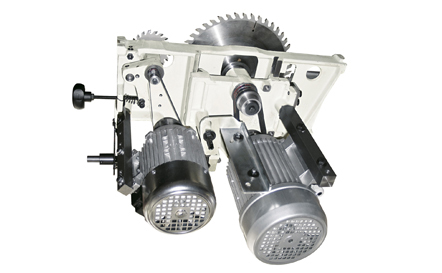

SC 4 Elite Saw Unit


The new saw unit is a sturdy cast iron closed loop structure, solidly supported under the table by two lateral supports. These solutions provide stability and rigidity, guaranteeing a perfect cut. The unit may be fitted with an optional scoring unit for a perfect cut even on faced panels. The scoring unit is available in the version with belt transmission from the main motor, or in the version with 0,55 kW (0,75 HP) independent motor. The maximum diameter allowed for the main blade is 315 mm with the scoring saw blade (diameter 100 mm) mounted. Saw unit lifting is performed by a strong, cast iron structure with dovetail system.





SC 4 Elite Scoring Adjustment

The scoring unit can be adjusted from the outside without tools and allows rapid, precise positioning.


SC 4 Elite Crosscut Fence

The Elite machines squaring frame, with dimensions 1200 x 650 mm, is supplied in standard equipment and complete with: 3000 mm telescopic fence with 2 crosscut flip-over stops and quick moving system eccentric clamp telescopic swinging arm support idle roller to facilitate the panel loading/unloading.sc4elite-crossfence.jpg

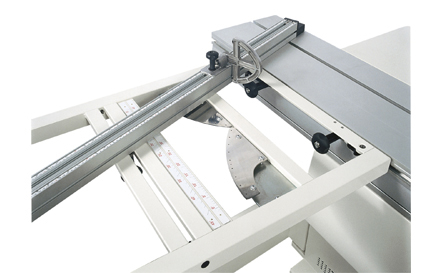

SC 4 Elite Mitre Device for Squaring Frame

Mitre device for squaring frame, to find rapidly the most common angles with the squaring fence. Useful for large workpieces.scm-panel-saw-sc4elite-squaring-frame.jpg













SC 4 Elite Rip Fence

Anodized aluminium parallel fence with: cast iron support with eccentric locking device micrometric rack adjustment millimetric rule with fine adjustment
Other standard devices: table extension on outfeed side operating units adjustment by means of fixed handwheels readout of saw unit tilting on the machine front side by means of a mechanical digital readout.scm-panel-saw-sc4elite-rip-fence.jpgSC 4 Elite Additional Support

For the support of panels with large dimensions is available an additional table on the sliding table.






SC 4 Elite Mitre Fence and Manual Clamp

Mitre device on the sliding table, to rapidly perform mitre cuts without moving the squaringfence.Recommended for mitre cuts on small workpieces.










 SC 4 Elite Dust Extraction Hood

The system is protected by a shavings conveyor which can be connected directly to the extractor, preventing shavings and sawdust from falling into the machine.


SC 4 Elite Technical Data

Max. saw blade diameter with scoring blade installed mm 315
Max. saw blade projection from table at 90° mm 100
Squaring stroke mm 1660 ÷ 3230
Cutting width on rip fence (standard) mm 900
Three-phase motor power starting from kw 4 (4,8) kw – 50 (60) hz
